TL;DR
NSX microsegmentation is most useful when it is treated as a workload protection system, not simply as another firewall. The distributed firewall places policy close to protected workloads, while groups, identity context, application awareness, logging, and security analytics turn that enforcement point into an operating model. The vault metaphor works because each workload receives its own controlled access boundary, but the vault remains secure only when inventory, ownership, rule lifecycle, exceptions, and validation are managed with discipline.
Introduction
Traditional data center security was designed around strong outer walls. Traffic entered through a perimeter firewall, passed through a limited number of trusted zones, and moved relatively freely once it was inside. That model worked when applications were simpler, server populations changed slowly, and most meaningful traffic crossed a visible network boundary.
Modern enterprise applications do not behave that way. A single business service may include web servers, APIs, authentication services, databases, message queues, automation platforms, secrets stores, monitoring systems, and third-party integrations. Much of the important traffic moves east-west between workloads, often without crossing a physical firewall.
The image of an NSX microsegmentation vault captures the architectural response to that problem. Instead of placing every valuable workload in one large trusted room, the platform creates many smaller protected compartments. Access is granted according to application role, identity, environment, and required service. The objective is not to make communication impossible. The objective is to make every permitted connection intentional, observable, and reviewable.
This article uses the vault as a mental model for designing and operating NSX distributed firewall policy in VMware Cloud Foundation and vDefend environments. It focuses on how the model works, how to implement it without breaking production, and where the metaphor can become misleading if security teams confuse product capability with operational maturity.
A secure vault is not valuable because it has a heavy door. It is valuable because the contents are separated, access is controlled, activity is recorded, and emergency procedures are defined before an incident occurs.
The same logic applies to NSX microsegmentation.
| Vault element | NSX implementation | Operational meaning |
|---|---|---|
| Outer door | North-south firewall and perimeter controls | Controls traffic entering or leaving the environment |
| Individual compartments | Distributed firewall policy applied to workload interfaces | Limits east-west access between workloads |
| Compartment labels | Groups, tags, attributes, and inventory context | Identifies workload role without relying only on IP addresses |
| Access rules | Layer 3 through Layer 7 policy, depending on capability and entitlement | Allows only required services and application flows |
| Security desk | NSX Manager and policy workflows | Defines, publishes, and governs policy |
| Cameras and logs | Flow visibility, rule logging, hit counts, analytics, and SIEM integration | Provides evidence, troubleshooting context, and drift detection |
| Emergency procedure | Emergency-category rules and controlled exceptions | Supports urgent containment or recovery without normalizing bypasses |
The critical design point is that the vault contains many compartments. A single perimeter rule does not protect the database from a compromised web server. A subnet boundary does not necessarily distinguish a production API from a test API. Microsegmentation becomes valuable when the workload itself is the policy subject.
Distributed Enforcement Changes the Traffic Model
NSX distributed firewall enforcement is implemented close to the virtual workload rather than being concentrated only at a centralized appliance. For protected east-west flows, policy can be evaluated at the workload interface without forcing traffic through a physical firewall or an NSX Edge solely for inspection.
That changes both architecture and operations.
A centralized firewall scales by adding appliances, interfaces, routing paths, and throughput capacity. A distributed firewall scales enforcement across the hypervisor estate. The management plane defines intent, while the distributed enforcement plane applies that intent close to each protected workload.

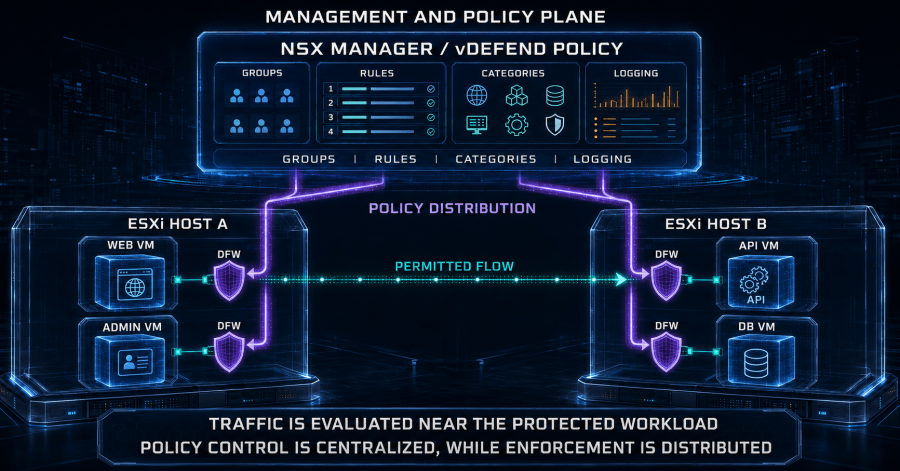

The diagram below shows the separation that matters. Policy is created centrally, but packet enforcement occurs in the distributed data path.
This is why NSX microsegmentation is not merely a virtual version of a physical firewall. It creates a different enforcement topology. Security can follow logical workload identity and application membership instead of depending exclusively on where a server is connected.
The benefit is significant, but so is the dependency on accurate policy objects. A distributed mistake is still a mistake. An overly broad group, incorrect tag, or poorly scoped deny rule can be enforced everywhere that policy applies. Distribution improves scale and consistency. It does not remove the need for change control.
The Vault Is Built from Identity and Context
The strongest microsegmentation policies do not begin with IP addresses. They begin with application identity.
A useful workload model normally includes attributes such as:
- application name
- application tier
- environment
- business owner
- technical owner
- data classification
- compliance scope
- deployment source
- recovery tier
- management profile
These attributes become the foundation for groups and policy scope. A virtual machine tagged as application Payments, tier API, and environment Production can be placed into the appropriate dynamic group. When another matching workload is deployed through an approved process, it can inherit the same policy intent without waiting for a manual firewall ticket tied to a new IP address.
Identity-Aware Policy
Identity Firewall extends the model by allowing rules to consider Active Directory user context in supported designs. That can be useful for administrative access, shared desktop environments, and user-to-application controls where network location alone is not enough.
Identity-aware policy should still be used carefully. User identity is one signal, not a replacement for workload identity, device posture, privileged access management, or application authorization. The operational team must understand how identity is learned, how stale mappings are handled, and what happens when dependent identity services are unavailable.
Application-Aware Policy
Application awareness can improve policy accuracy when a service cannot be safely identified by port alone. Layer 7 context can help distinguish supported applications and protocols even when they share common ports.
This is also where the vault image can overpromise. A green check beside “encrypted inspection” should not be interpreted as proof that every encrypted east-west session can be deeply inspected by the distributed firewall. Layer 7 identification, distributed IDS/IPS, gateway TLS inspection, and malware prevention are related but distinct capabilities. They may have different enforcement points, prerequisites, editions, performance implications, and certificate requirements.
The design should name the exact control being used instead of placing every advanced security function under the word microsegmentation.
Policy Tiers Turn Rules into an Architecture
Large NSX environments become difficult to operate when every rule is placed into one long application section. Policy categories provide a way to separate intent and ownership.
A practical model aligns closely with the policy tiers represented in the image.
| Policy tier | Typical purpose | Examples | Primary owner |
|---|---|---|---|
| Emergency | Urgent containment or tightly governed break-glass action | isolate a compromised group, block a malicious service | Security operations |
| Infrastructure | Shared services required by many workloads | DNS, NTP, identity, PKI, backup, monitoring | Platform and infrastructure teams |
| Environment | Boundaries between operational zones | production to non-production, regulated to general workloads | Security architecture |
| Application | Approved service-to-service communication | web to API, API to database, application to message queue | Application and platform teams |
| Default posture | Behavior after explicit policy has been evaluated | deny unapproved communication at the intended scope | Security governance |
The categories should not become organizational dumping grounds. Infrastructure policy must not be used to hide application exceptions. Emergency rules must not remain permanently enabled because the incident ticket was closed. Environment rules must not replace application-level controls simply because they are easier to write.
The best policy hierarchy reflects how the enterprise actually makes decisions. Shared platform services are governed once. Environment boundaries are consistent. Application owners provide dependency intent. Security teams define default posture, review exceptions, and verify evidence.
A Practical Application Policy Model
Consider a payment platform with the following components:
- internet-facing web tier
- API services
- authentication service
- payment processing service
- database tier
- message queue
- monitoring and backup services
- administrative jump hosts
A weak design allows broad communication inside a production network. A stronger design expresses only the required application paths.

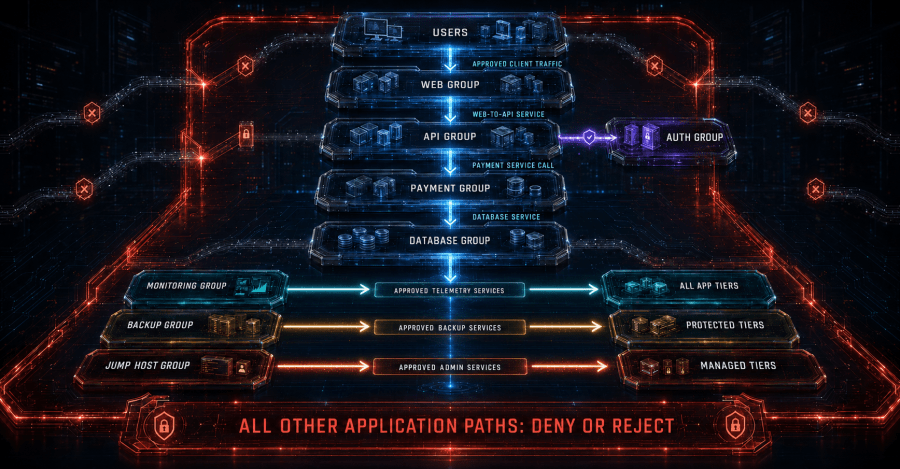

The diagram is intentionally dependency-oriented. It does not assume that every connection is bidirectional, that every tier uses the same ports, or that monitoring requires unrestricted access. The exact services must be validated against observed application behavior and owner-approved requirements.
A production policy record should include more than source, destination, and port. It should also capture:
- business purpose
- application owner
- change or control identifier
- environment scope
- logging requirement
- expiration date for temporary access
- validation method
- rollback action
- exception status
That metadata is what turns a firewall rule into a governed control.
Building the Vault Without Breaking Production
Microsegmentation programs fail when teams jump from broad trust to default deny without understanding application dependencies. The safer path is staged.
Establish Inventory and Ownership
Start by identifying the workloads that are actually in scope. Confirm application ownership, environment, criticality, data classification, and lifecycle status. Remove or isolate abandoned systems before spending time writing precise rules for them.
The first deliverable should be an application and dependency inventory, not a firewall rule set.
Normalize Tags and Dynamic Group Logic
Create a naming and tagging standard that can be enforced through provisioning workflows. Avoid group criteria based on informal names, temporary folder structures, or attributes that application teams can change without governance.
Test dynamic membership before attaching enforcement policy. A group that is empty, unexpectedly broad, or populated from inconsistent metadata can produce either an outage or a security gap.
Observe Real Traffic
Use flow visibility and application dependency data to understand normal communication. Observation should cover representative business cycles, maintenance windows, backups, batch jobs, certificate operations, failover testing, monitoring, and administrative workflows.
A short capture during a quiet period is not an application baseline.
Draft Rules Around Required Flows
Translate observed flows into owner-approved service intent. Eliminate obvious noise, investigate undocumented dependencies, and separate permanent requirements from temporary behavior.
Do not automatically convert every observed connection into an allow rule. Observation shows what happened. It does not prove that the traffic is required or safe.
Stage, Log, and Validate
Introduce policy in controlled waves. Use logging and rule statistics selectively so the operations team can evaluate matches without overwhelming telemetry systems. Validate both expected success and expected failure.
A good test plan proves that approved communication works and unauthorized communication does not.
Enforce and Review
Move from observation to enforcement only after application owners, security teams, and platform operators agree on the dependency model and rollback plan. Review rules after deployment to identify unused entries, broad groups, stale exceptions, shadowed logic, and policy that no longer matches the application.
The complete lifecycle should look like this:
The loop matters. A vault that is configured once and never inspected eventually accumulates stale access, abandoned compartments, and undocumented master keys.
Emergency Rules Need Break-Glass Governance
The image includes an emergency override with the warning that glass should be broken only when necessary. That is the correct operating mindset.
Emergency policy can be essential during ransomware containment, active exploitation, credential compromise, or a major application outage. It can also become a permanent bypass if the organization does not define ownership and expiration.
A controlled emergency process should require:
- a named incident or change record
- a clearly defined scope
- a documented reason
- an accountable approver
- a start time and expiration time
- enhanced logging
- validation of the intended effect
- post-incident removal and review
The fastest incident response is not the policy that allows an administrator to do anything. It is the policy model that already contains trusted quarantine groups, tested containment workflows, and documented recovery paths.
Audit and Compliance Depend on Evidence
Microsegmentation is often presented as a compliance control, but a diagram and a rule count are not evidence of effective control.
Auditors and security reviewers need to understand:
- what assets are in scope
- who approved the policy
- which flows are permitted
- which flows are denied
- how changes are tracked
- how exceptions expire
- whether rules are matching traffic
- whether policy is consistent across the intended estate
- how violations are investigated
- how control effectiveness is tested
NSX security dashboards, rule statistics, flow data, policy change records, and integrations with external logging platforms can contribute to that evidence. They do not automatically create a compliant process.
The operating model should define evidence retention, review cadence, alert ownership, and the relationship between technical policy objects and enterprise controls. A firewall rule named Allow-App-Traffic is not meaningful evidence. A rule tied to an application ID, owner, approved dependency, control objective, and validation result is.
Common Ways the Vault Fails
The Compartments Are Labeled Incorrectly
Inconsistent tags and ownership data create incorrect group membership. Policy may protect the wrong workloads or miss the intended ones entirely.
The Master Key Becomes Normal Access
Exclusion lists, broad infrastructure groups, and emergency rules can bypass intended controls. These mechanisms require stricter governance than ordinary application rules.
Every Observed Flow Is Allowed
Flow discovery is a starting point, not a security decision. Malware, misconfiguration, and legacy dependencies also generate traffic.
Logging Is Enabled Without Capacity Planning
Logging every rule on every flow can overwhelm collectors, increase storage costs, and make important events harder to find. Logging should be aligned to risk, investigation needs, and retention requirements.
Application Owners Are Consulted Too Late
Network and security teams can observe connections, but they cannot always determine business necessity. Owners must validate dependencies and participate in testing.
Layer 7 Features Are Treated as Magic
Application identification and advanced inspection can improve control, but they do not eliminate encrypted traffic design, certificate management, false positives, performance analysis, or entitlement checks.
Microsegmentation Is Treated as the Entire Zero Trust Program
Microsegmentation limits reachable paths and can reduce lateral movement opportunities. It does not replace identity governance, endpoint protection, vulnerability management, secure application design, secrets management, backups, or incident response.
Decision Criteria for Adopting the Model
The vault model is a strong fit when the organization has:
- applications with identifiable tiers and owners
- meaningful east-west traffic risk
- a need to isolate regulated, critical, or high-value workloads
- automation or governance capable of maintaining metadata
- operational teams prepared to validate dependencies
- logging and analytics capacity
- a change process that can support staged enforcement
The model becomes difficult when workload inventory is unreliable, application ownership is unclear, tagging is unmanaged, or the organization expects the firewall team to infer every dependency alone. In those conditions, a pilot should focus first on metadata, ownership, and observability.
The decision is not whether microsegmentation is theoretically valuable. It is whether the enterprise can operate the policy lifecycle required to make that value durable.
Operational Ownership Must Be Shared
NSX microsegmentation crosses team boundaries.
Security architects define control intent and risk posture. NSX and virtualization teams operate the platform and enforcement plane. Application teams validate dependencies. Identity teams support user and service identity. Platform engineering teams standardize tags and deployment metadata. Security operations teams monitor alerts and execute containment. Governance teams map evidence to controls.
No single team can own the complete vault.
A workable responsibility model should answer four questions:
- Who defines the policy objective?
- Who supplies the application dependency?
- Who implements and validates the rule?
- Who reviews evidence and removes stale access?
When those answers are unclear, the rule base becomes a history of tickets instead of a security architecture.
Conclusion
The NSX microsegmentation vault is a useful mental model because it shifts the security conversation from protecting a network perimeter to protecting individual workloads and application relationships. Distributed firewall enforcement places policy near the workload, while groups, identity context, application awareness, and analytics make policy more adaptable than traditional address-based rules.
The vault is not created by enabling a feature. It is created through accurate inventory, governed metadata, deliberate policy tiers, staged enforcement, break-glass controls, validation, and continuous review. Without those practices, distributed policy can spread inconsistency just as efficiently as it spreads protection.
The practical next step is to select one well-understood application, build an owner-approved dependency model, create dynamic groups from governed attributes, observe a complete business cycle, and enforce policy in controlled waves. That pilot should prove the operating model as much as the firewall capability.
